Aircraft > RE2005
COCKPIT
1 - Coolant dual thermometer
2 - Rudder Pedals
3 - Engine oil dual thermometer
4 - Manifold pressure gauge
5 - Landing gear control
6 - Fuel pressure gauge
7 - Engine oil pressure
8 - 4000 RPM gauge
9 - Fuel control valve handle
10 - Fixed cockpit
11 - Oscillating cockpit
12 - Magnetos switch
13 - Hydraulic oil pressure gauge
14 - Patin compass indicator
15 - OMI artificial horizon
16 - 700 km/h airspeed indicator
17 - Direction indicator BG.42
18 - OMI compass, model 03
19 - (Madonna di Loreto - not used)
20 - Turn and bank indicator
2 - Rudder Pedals
3 - Engine oil dual thermometer
4 - Manifold pressure gauge
5 - Landing gear control
6 - Fuel pressure gauge
7 - Engine oil pressure
8 - 4000 RPM gauge
9 - Fuel control valve handle
10 - Fixed cockpit
11 - Oscillating cockpit
12 - Magnetos switch
13 - Hydraulic oil pressure gauge
14 - Patin compass indicator
15 - OMI artificial horizon
16 - 700 km/h airspeed indicator
17 - Direction indicator BG.42
18 - OMI compass, model 03
19 - (Madonna di Loreto - not used)
20 - Turn and bank indicator
21 - 25 m/s vertical speed indicator
22 - Clock
23 - Oxygen pressure gauge
24 - Pressure indicator
25 - Vacuum distribution control box - control
26 - Vacuum distribution control box - display
27 - E.C. Gasoline pneumatic injector handle
28 - Engine shut off handle
29 - Electrical activation engine starter
30 - Switches for bombs drop
31 - Brake air pressure gauge
32 - (Fuel switch over pressure gauge)
33 - 12.7 mm machine gun ammunition electrical counter
34 - 20 mm machine guns ammunition counters and safety switches
35 - 12.7 gun reload handle
36 - Fuel pumps switches
37 - Landing gear and flaps position indicator
38 - Heated pitot tube lamp and switch
39 - S. Giorgio, model C
40 - Flap control
41 - Spark plug cleaning lever
42 - Left gun 12.7 ammo reload switch
43 - Right gun 12.7 ammo reload switch
44 - 10000m altimeter
22 - Clock
23 - Oxygen pressure gauge
24 - Pressure indicator
25 - Vacuum distribution control box - control
26 - Vacuum distribution control box - display
27 - E.C. Gasoline pneumatic injector handle
28 - Engine shut off handle
29 - Electrical activation engine starter
30 - Switches for bombs drop
31 - Brake air pressure gauge
32 - (Fuel switch over pressure gauge)
33 - 12.7 mm machine gun ammunition electrical counter
34 - 20 mm machine guns ammunition counters and safety switches
35 - 12.7 gun reload handle
36 - Fuel pumps switches
37 - Landing gear and flaps position indicator
38 - Heated pitot tube lamp and switch
39 - S. Giorgio, model C
40 - Flap control
41 - Spark plug cleaning lever
42 - Left gun 12.7 ammo reload switch
43 - Right gun 12.7 ammo reload switch
44 - 10000m altimeter
66 -
The following images are referred to the production series, as the layout corresponds to the drawing UB120:
Cockpit - right side
(Courtesy of Mr. Walter Baricchi)
(Courtesy of Mr. Walter Baricchi)
Right side
- Oxygen bottles
Cockpit - left side
The following images refer probably to the prototypes:
Cockpit - front
14th June 1943
The additional upper compressor gauge was not foreseen. In its background the artificial horizon can be seen.
14th June 1943
The additional upper compressor gauge was not foreseen. In its background the artificial horizon can be seen.
The FIMAC vacuum system is also not the final one.
(Courtesy of Mr. Walter Baricchi)
Gauges position does not correspont to drawings, see milliammeter, flight control stick and others

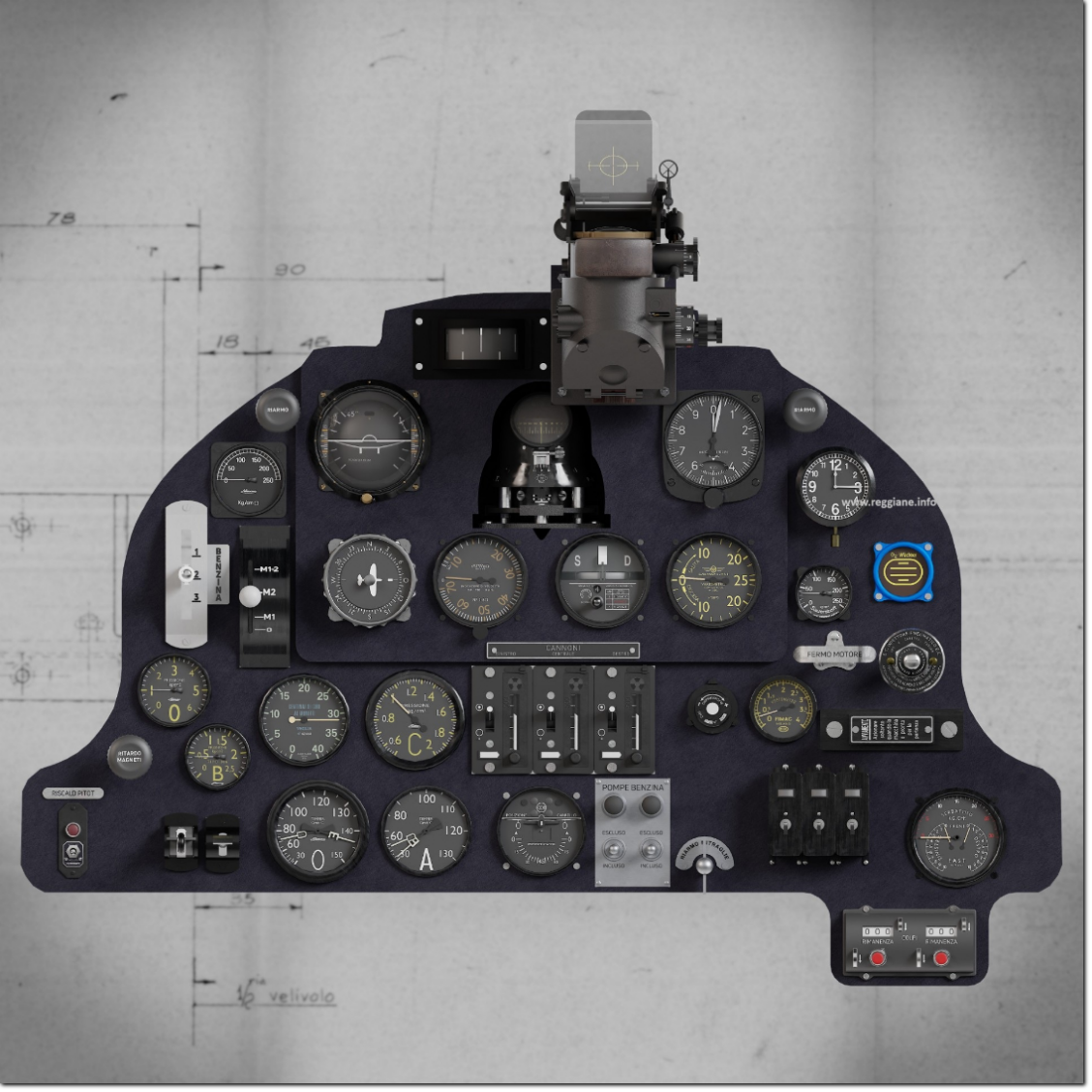

(3D simulation - Author: Mr. Valerio Paglino)
